Cargo Spheroid 50

Cargo Spheroid 50 – 110LBS 50kg

Australian Made

Web: www.turtlepac.com
Email: turtlepac@yahoo.com.au

Int. Ph/Fax: 61 7 5598 1959 US Toll free Ph: 1 866 310 2992

Cargo Spheroid 50 – 110LBS 50KG

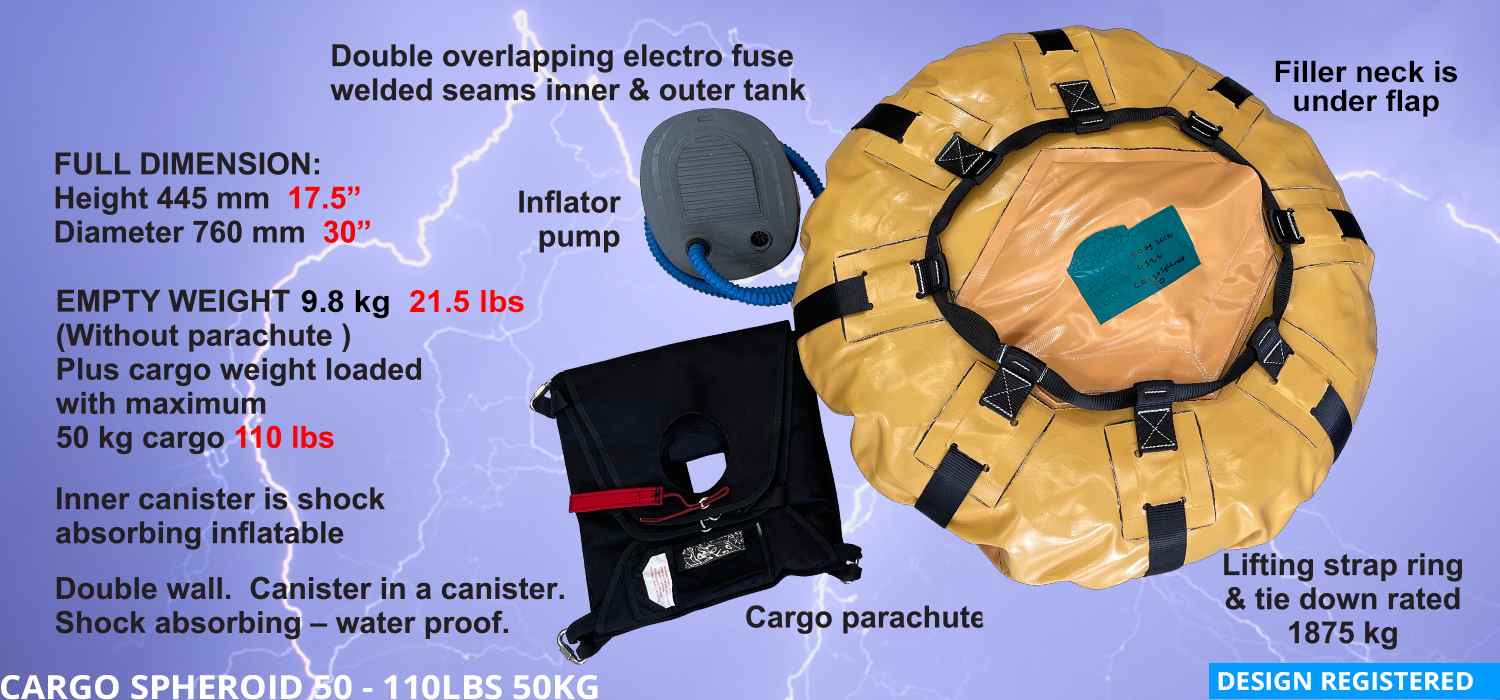

Double wall. Tank in a tank. Shock absorbing – water proof.
Inner tank is shock absorbing inflatable
Double overlapping electro fuse welded seams inner & outer tank
Filler neck is under flap
Inflator pump
Lifting strap ring & tie down rated 1875 kg
Cargo parachute

FULL DIMENSION:

Height 445 mm 17.5”
Diameter 760 mm 30”

EMPTY WEIGHT 9.8 kg 21.5 lbs (Without parachute )
Plus cargo weight loaded with maximum 50 kg cargo 110 lbs

Email: turtlepac@yahoo.com.au

Int. Ph/Fax: 61 7 5598 1959 US Toll free Ph: 1 866 310 2992

Cargo Spheroid 50 – 110LBS 50KG

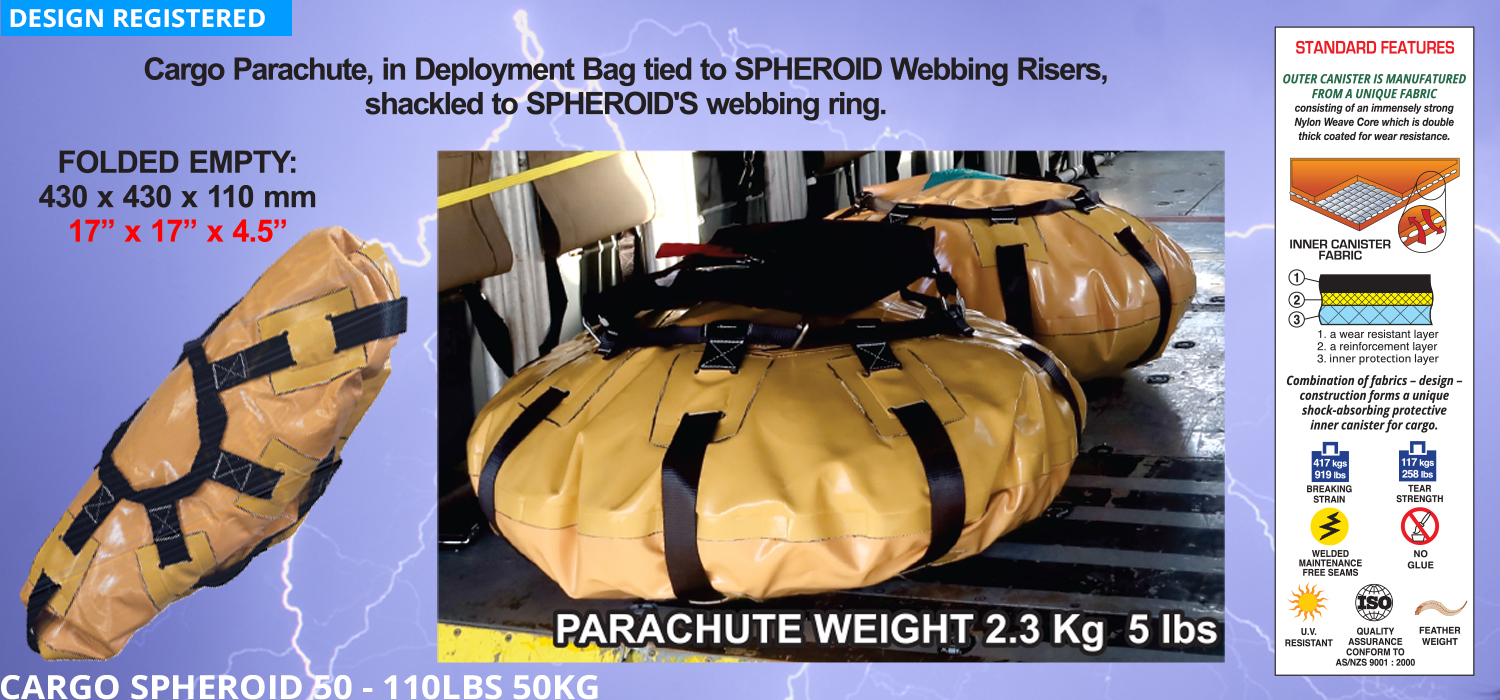

Cargo Parachute, in Deployment Bag tied to SPHEROID
Webbing Risers, shackled to SPHEROID’S webbing ring.

FOLDED EMPTY:

430x 430 x 110 mm 17” x 17” x 4.5”
PARACHUTE WEIGHT 2.3 Kg 5 lbs
CARGO SPHEROID 50 is a compact drop cannister to handle – roll by one person out of aircraft or on the ground.
Extremely tough to suit remote area – combat supplies.

AIR DROP:

Sensitive – fragile equipment as electronics – medical supplies – explosives etc.

Can lift by helicopter as underslung cargo or carry in cargo hold.
Inside fixed wing aircraft fuselage easy to roll forward for W&B then roll to door for drop.

Email: turtlepac@yahoo.com.au

Int. Ph/Fax: 61 7 5598 1959 US Toll free Ph: 1 866 310 2992

Cargo Spheroid 50 – 110LBS 50KG

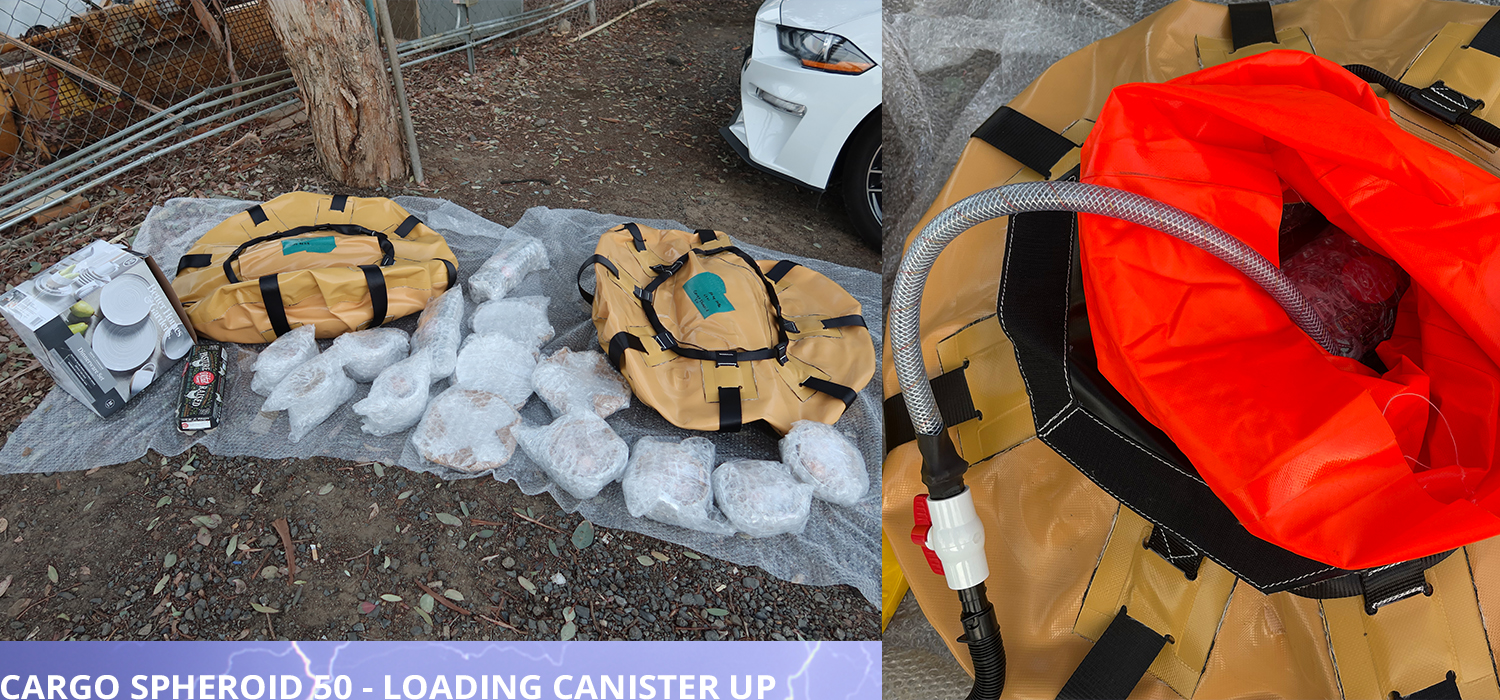

Loaded with ceramic table wear and eggs for demo drops
After loading gently inflate inner cannister with air. Before closing neck and flap.

Email: turtlepac@yahoo.com.au

Int. Ph/Fax: 61 7 5598 1959 US Toll free Ph: 1 866 310 2992

Cargo Spheroid 50 – 110LBS 50KG

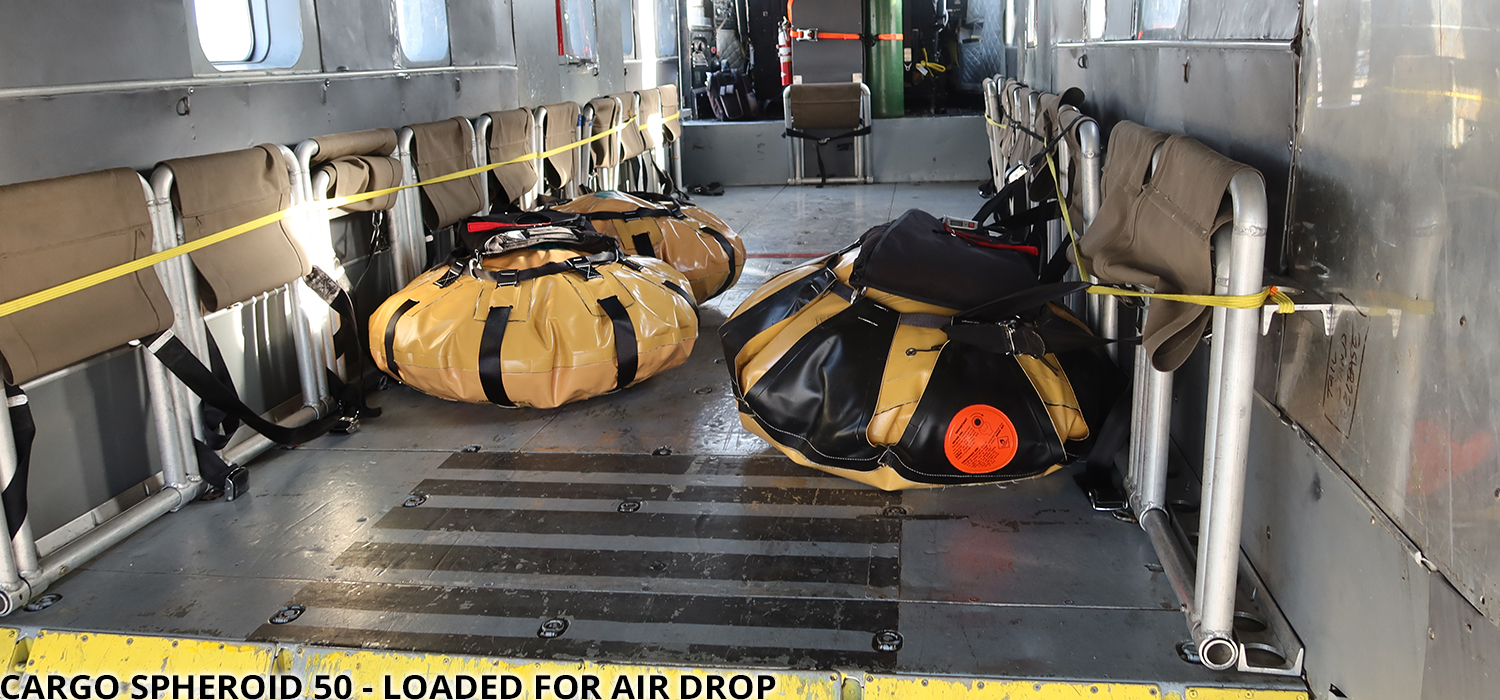

CARGO SPHEROIDS loaded for air drop

Email: turtlepac@yahoo.com.au

Int. Ph/Fax: 61 7 5598 1959 US Toll free Ph: 1 866 310 2992

Cargo Spheroid 50 – 110LBS 50KG

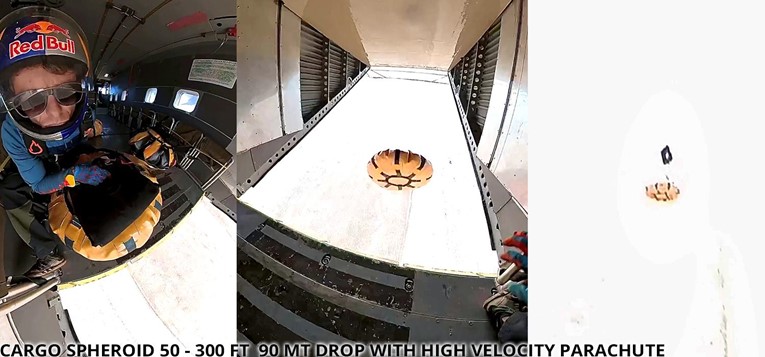

300 ft 90 mt Drop with high velocity parachute. 80 knots 148 km
Ready for 300 ft roll out
Out it goes !
Chute starts to open up

Email: turtlepac@yahoo.com.au

Int. Ph/Fax: 61 7 5598 1959 US Toll free Ph: 1 866 310 2992

Cargo Spheroid 50 – 110LBS 50KG

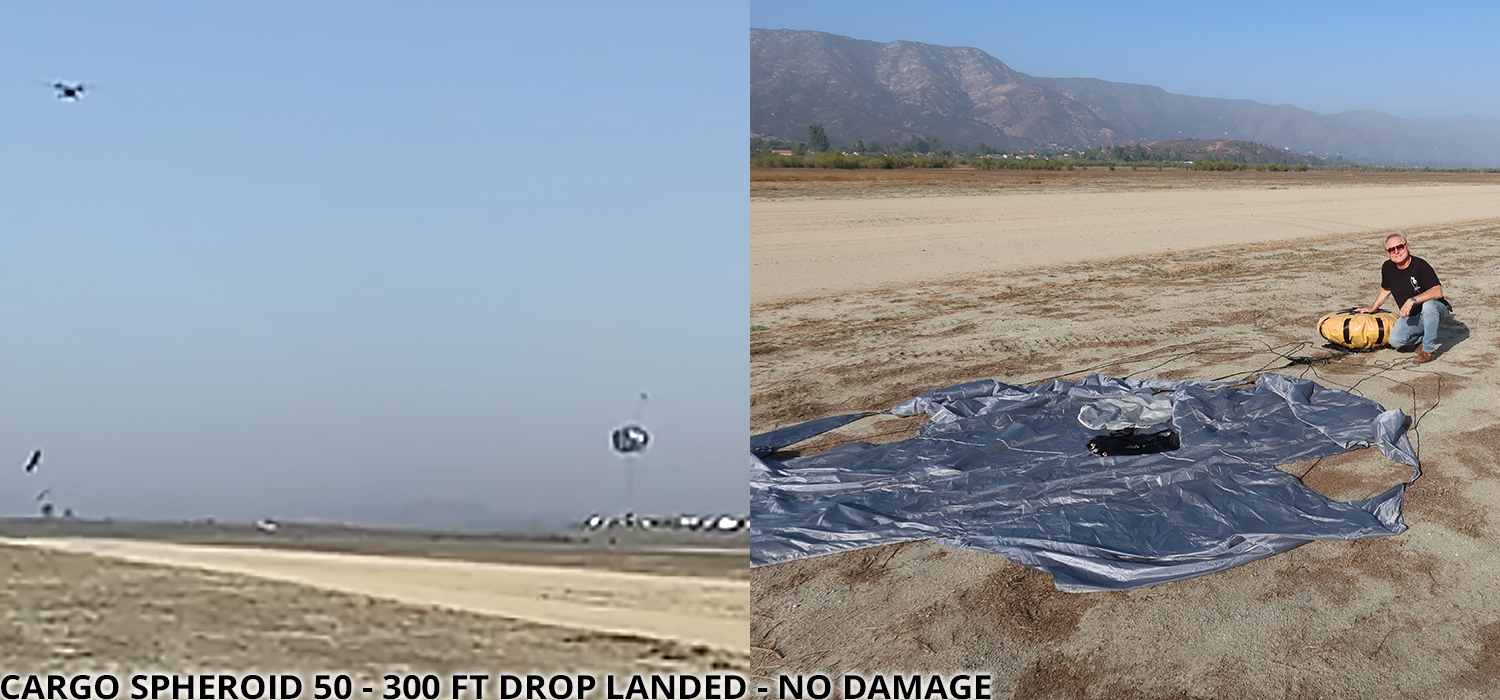

Show landing on runway
Land in seconds on target

Chute on ground with me.
300 ft drop landed. No damage.

Email: turtlepac@yahoo.com.au

Int. Ph/Fax: 61 7 5598 1959 US Toll free Ph: 1 866 310 2992

Cargo Spheroid 50 – 110LBS 50Kg

SKYVAN fly low

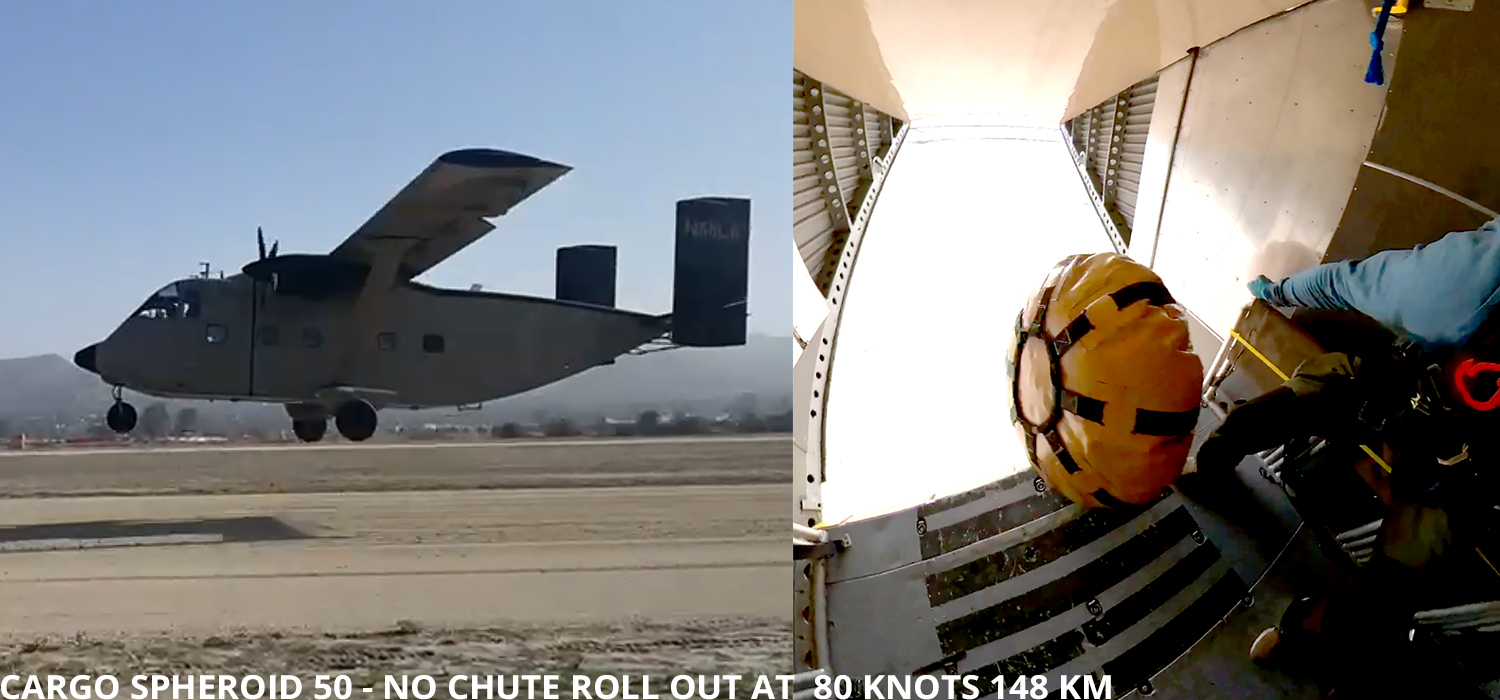

NO CHUTE ROLL OUT at 80 knots 148 km
SKYVAN swoops down for low drop

Photo: Roll out from back
No chute roll out

Email: turtlepac@yahoo.com.au

Int. Ph/Fax: 61 7 5598 1959 US Toll free Ph: 1 866 310 2992

Cargo Spheroid 50 – 110LBS 50KG

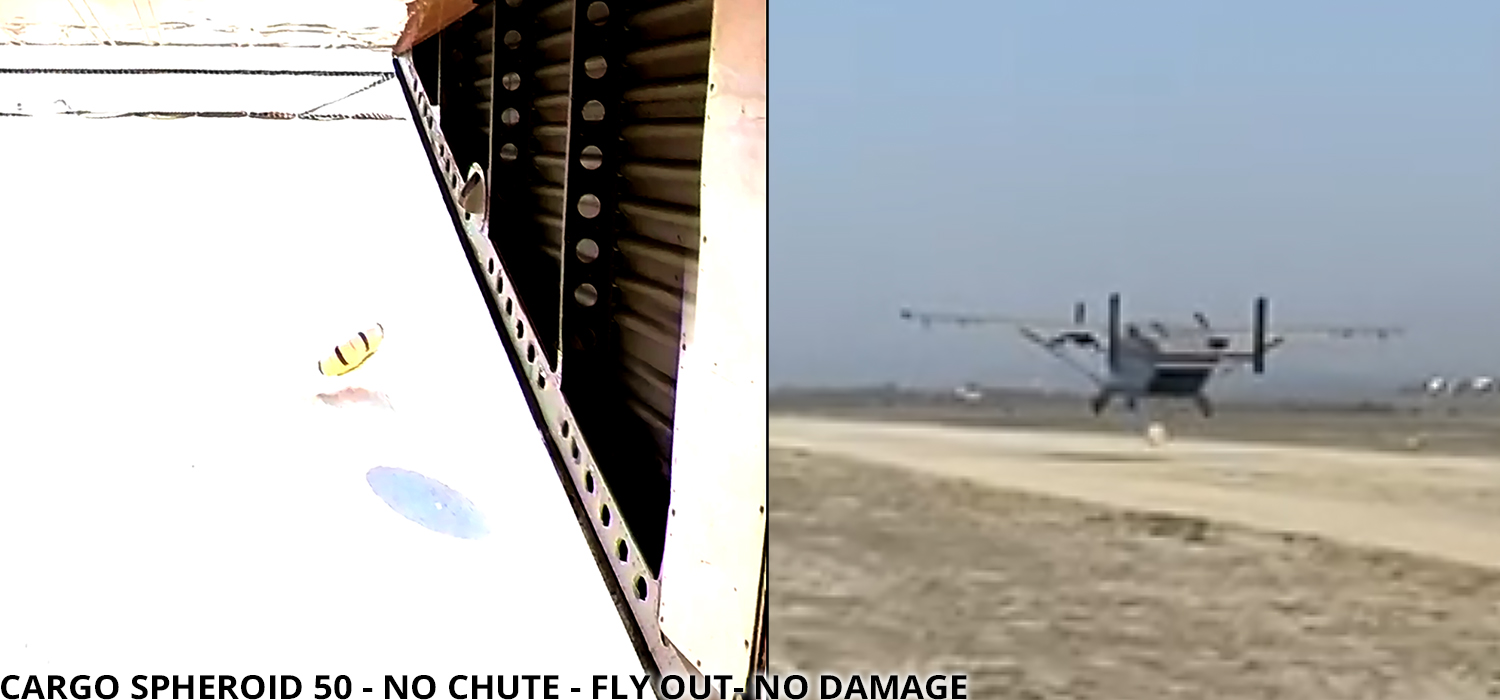

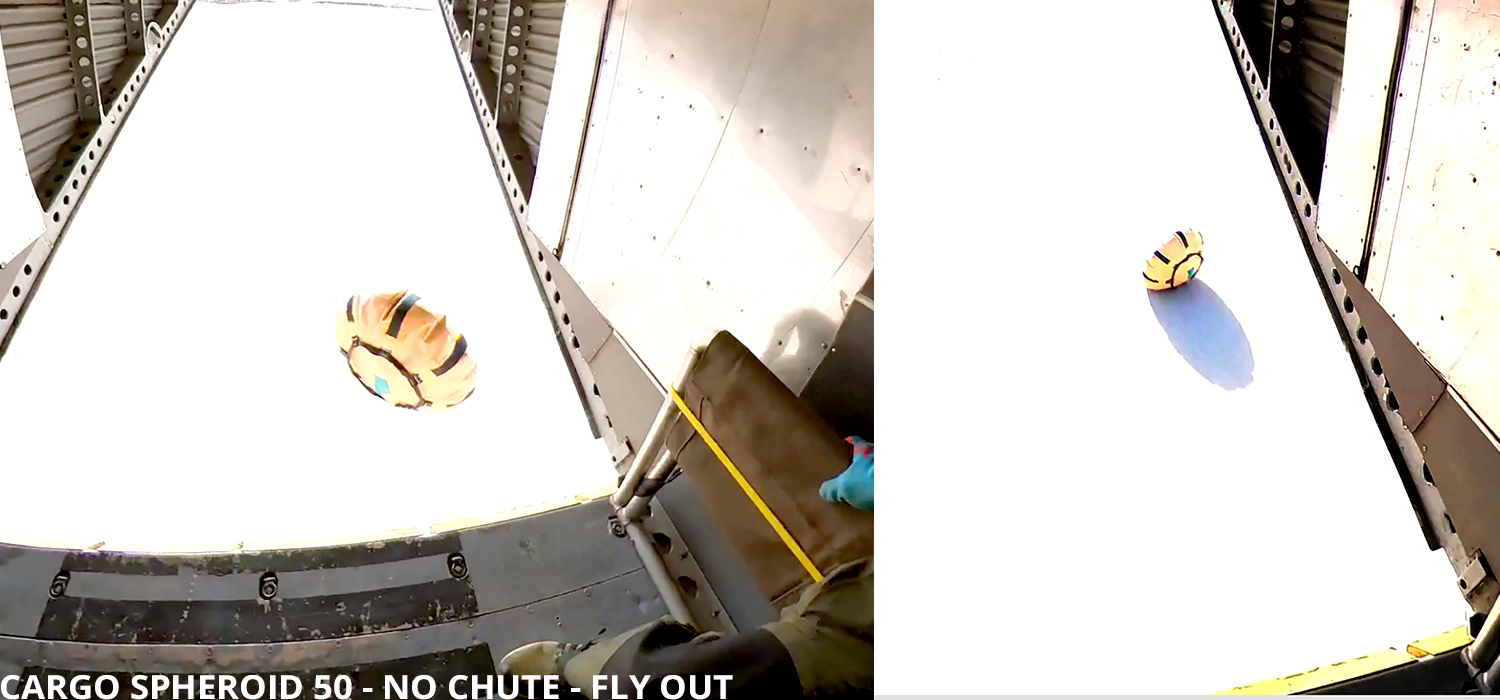

Fly out !
Glances ground !

Email: turtlepac@yahoo.com.au

Int. Ph/Fax: 61 7 5598 1959 US Toll free Ph: 1 866 310 2992

Cargo Spheroid 0 – 110LBS 50KG

Roll on ground

Jump & roll dissipating energy – reducing shock load on cargo

Rolled out at speed – ground is hard with gravel. NO damage.

Email: turtlepac@yahoo.com.au

Int. Ph/Fax: 61 7 5598 1959 US Toll free Ph: 1 866 310 2992

Cargo Spheroid 50 – 110LBS 50KG

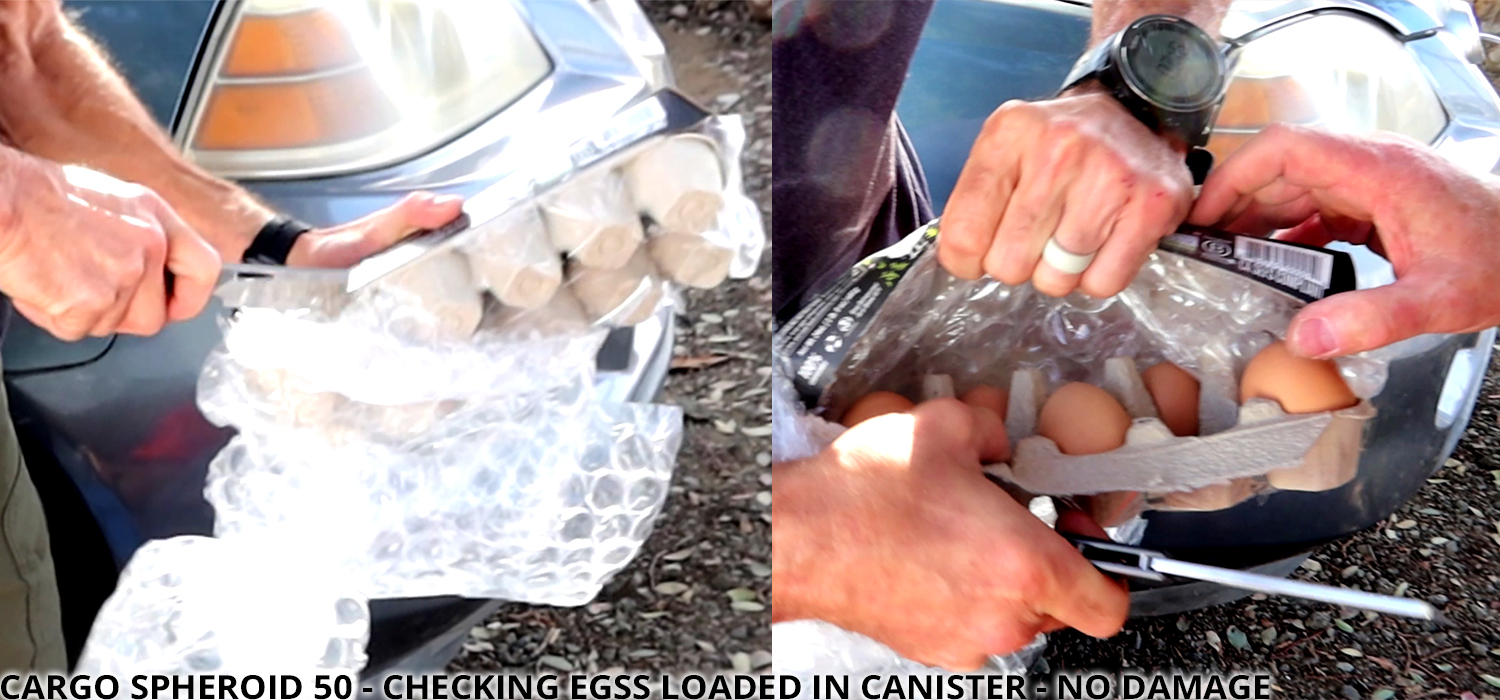

Eggs case open up
Eggs not broken ! Neither will sensitive electronics – medical equipment – optics – explosives etc.

WORLD’S FIRST AIR DROPPABLE SHOCK ABSORBING CANNISTER WITHOUT PARACHUTE !!!

Light aircraft can air drop sensitive – fragile supplies. Humanitarian aid – disaster aid – combat resupply troops without helicopters or airfield.
Deployment possible in very short time – without special training or preparation. Other then drop crew wear short harness.
FAST – MOST ACCURATE FOR SMALL DROP ZONES – COST EFFECTIVE – UTILIZE THE AIRCRAFT OF OPPORTUNITY as Cessna 206 – Cessna 208 – DHC-2 Beaver– DHC-6 Twin Otter – P-750 – CASA 212 – Short 330 etc.
Also can be deployed from faster transport aircraft as C130 Hercules – C-17 – AN-32 etc.

NO PARACHUTE drop success depends, on pilots skill and willingness to fly at 80 knots or slower – almost do a touch and go but wheels not touch ground. Must avoid rocky ground – forest.
Cannister can get damaged if not stay within operational limitations.

Expected number of times reuse:

1.) Air dropped with parachute: : Over 100 x cycles as long avoid – sharp rock and tree canopies or similar highly destructive ground.
2.) Air dropped with no parachute: As long stay within limitations of almost touch ground – 80 knots 148 km speed. – avoid – sharp rocks and trees or similar highly destructive ground. 20 x cycles. BUT if ground is soft as sand over 100 x cycles. If pilot can fly slower the re-usable cycle will increase.
Helicopters and slow bush aircrafts are most effective

DESIGN REGISTERED
