Double wall serves as containment tank
Inner tank changeable
Double overlapping electro fuse welded seams inner & outer tank
Lifting strap ring & tie down rated 1875 kg
INLET/OUTLET 1” 25 mm – brass cap – air plug
Filer lift up handle
Cargo Parachute, in Deployment Bag tied to SPHEROID
Webbing Risers, shackled to SPHEROID’S webbing ring.

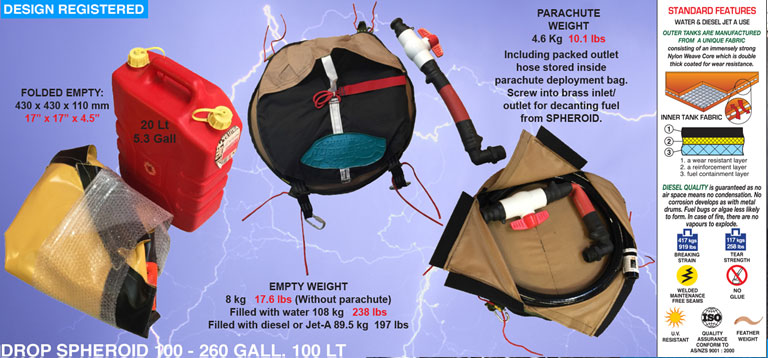

EMPTY WEIGHT 8 kg 17.6 lbs (Without parachute )
Filled with water 108 kg 238 lbs Filled with diesel or Jet-A 89.5 kg 197 lbs
PARACHUTE WEIGHT 4.6 Kg 10.1 lbs
Including packed outlet hose stored inside parachute deployment bag. Screw into brass inlet/outlet for decanting fuel from SPHEROID.
DROP SPHEROID 100 is compact tank to handle – roll by one person out of aircraft or on ground. Extremely tough tank to suit remote area operations for Diesel – Jet A – Avgas – Drinking water. Can lift by helicopter as underslung cargo or carry in cargo hold.
Inside fixed wing aircraft fuselage easy to roll forward for W&B then roll to door for drop.
Optional kit bag contains:
Anti Splash funnel for easy filling.
Transfer pump kit 12 or 24 volt. Transfer diesel or water – Jet- A . JP-8. Capacity 32 litre 8.5 gal per minute at 14 PSI to 9.7 metre 32 ft head. Includes 4 metres 13 ft of electric cable with alligator battery clips. Hose 25 mm ¾” 4 metres 13 ft. Suction end connects to SPHEROID outlet – outlet end fitted with male camlock.
Kit bag 410 x 520 x 90 mm 16” x 20.5” x 3.5” 3.5 kg 7.7 lbs
Filling up with water to 100 Lt 26 Gall. Then top up with air to 1 PSI.

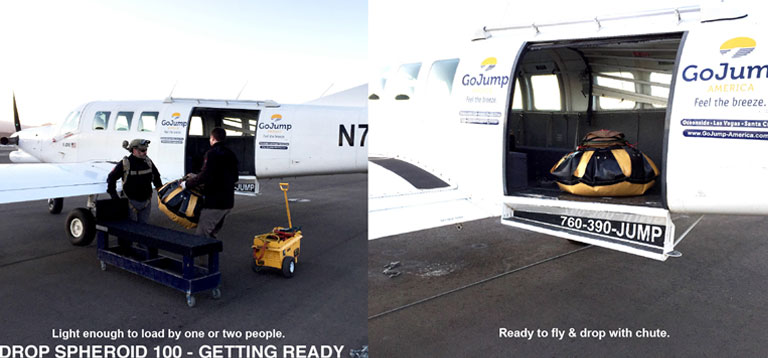

Light enough to load by one or two people. Ready to fly & drop with chute

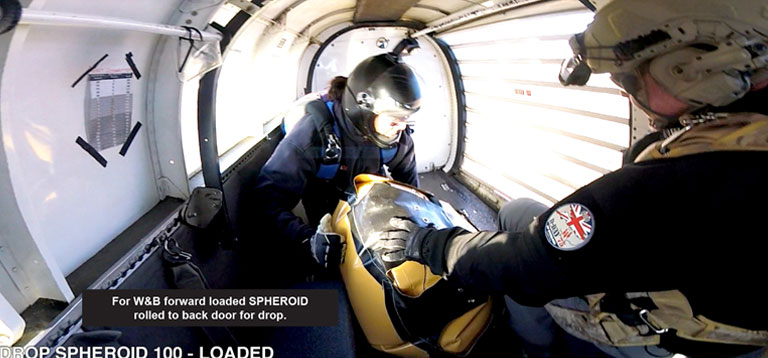

For W&B forward loaded SPHEROID rolled to back door for drop

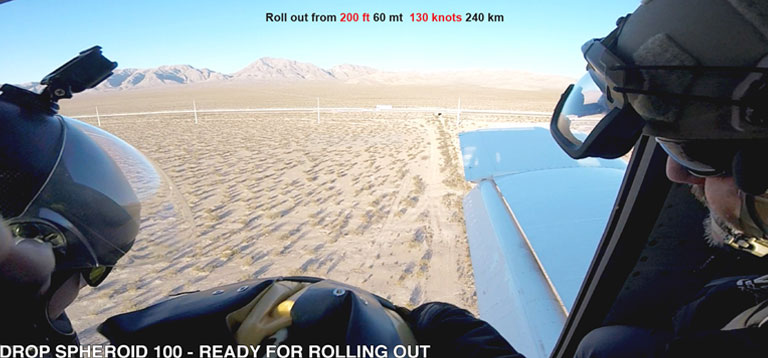

Roll out from 200 ft 60 mt 130 knots 240 km

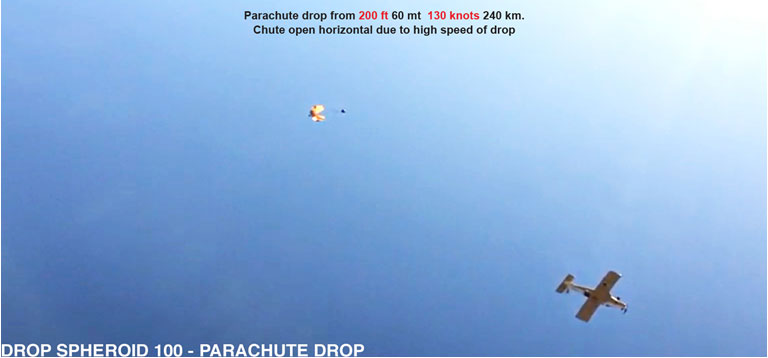

Parachute drop from 200 ft 60 mt 130 knots 240 km. Chute open horizontal due to high speed of drop

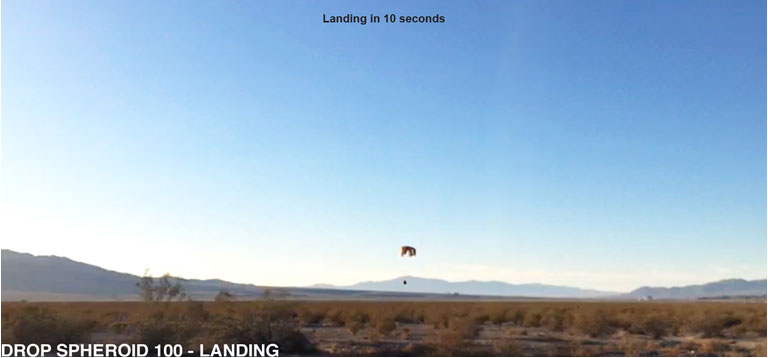

Landing in 10 seconds

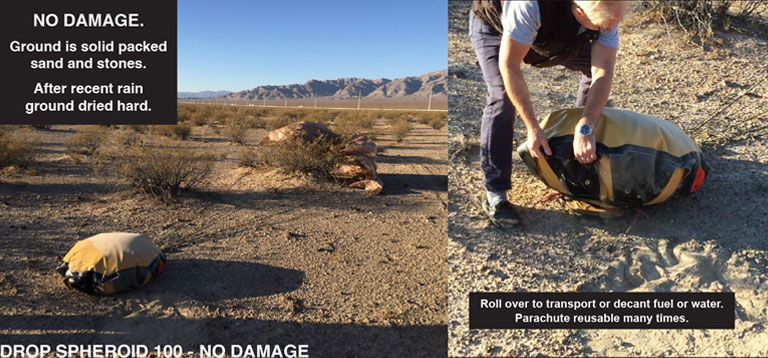

NO DAMAGE. Ground is solid packed sand and stones. After recent rain ground dried hard.
Roll over to transport or decant fuel or water. Parachute reusable many times.

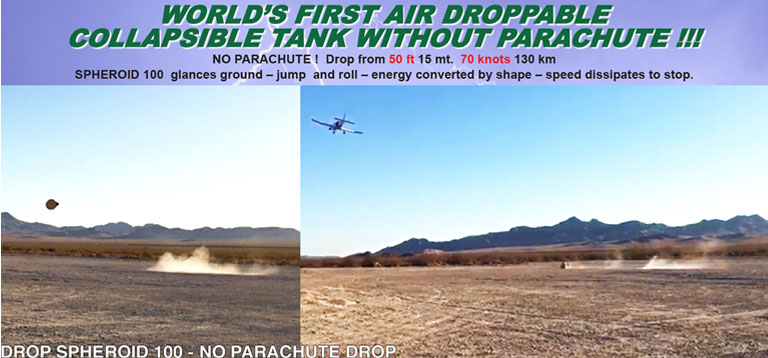

WORLD’S FIRST AIR DROPPABLE COLLAPSIBLE TANK WITHOUT PARACHUTE !!!
NO PARACHUTE ! Drop from 50 ft 15 mt. 70 knots 130 km
SPHEROID 100 glances ground – jump and roll – energy converted by shape – speed dissipates to stop.

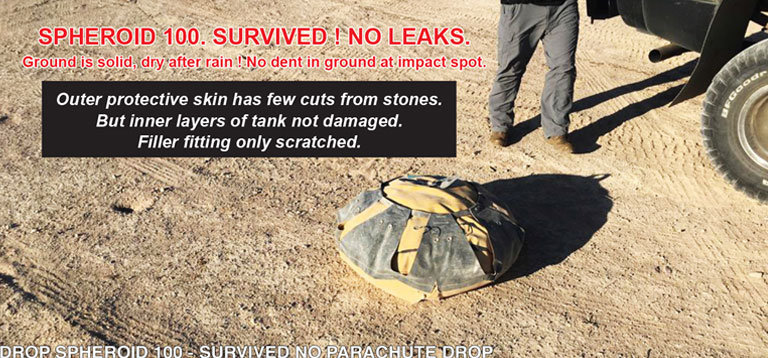

SPHEROID 100 . SURVIVED ! NO LEAKS. Ground is solid, dry after rain ! No dent in ground at impact spot.
Outer protective skin has few cuts from stones. But inner layers of tank not damaged. Filler fitting only scratched.
Light aircraft can air drop fuel or water. Humanitarian aid – disaster aid – combat resupply troops without helicopters or airfield.
Deployment possible in very short time – without special training or preparation. Other then drop crew wear short harness.
FAST – MOST ACCURATE FOR SMALL DROP ZONES – COST EFFECTIVE – UTILIZE THE AIRCRAFT OF OPPORTUNITY as Cessna 206 – Cessna 208 – DHC-2 Beaver– DHC-6 Twin Otter – P-750 – CASA 212 – Short 330 etc.
Also can be deployed from faster transport aircraft as C130 Hercules – C-17 – AN-32 etc.
NO PARACHUTE drop success depends, on pilots skill and willingness to fly at 70 knots or slower – at 50 ft or lower. Must avoid concrete and rocky ground. Tank can bust ! If not stay within operational limitations.
Expected number of times reuse:
1.) Air dropped with parachute: Over 100 x cycles as long avoid – sharp rock and tree canopies or similar highly destructive ground.
2.) Air dropped with no parachute: As long stay within limitations of 50 ft 15 Metre height – 70 knots 130 km speed. – avoid concrete – sharp rocks and trees or similar highly destructive ground. 5 x cycles. BUT if ground is soft as sand over 20 x cycles. If pilot can fly lower and slower the re-usable cycle will increase.
Helicopters and slow bush aircrafts are most effective
